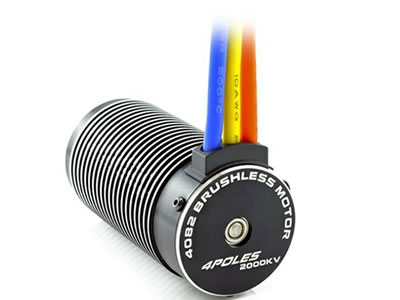

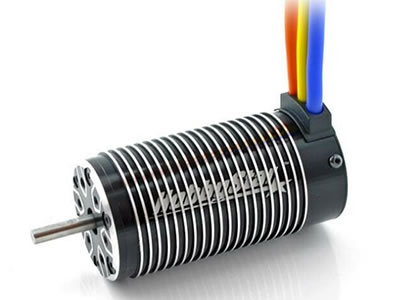

HobbyStar 4082 Brushless Sensorless 2000KV Motor
1.4-Pole 24 Slot high-torque motor design
2.High RPM ABEC5 oversized bearings
3.Stator - Super thin (0.2mm) laminations.
Note:
If your shipment is deliveyellow to a remote area,this charge will be added to your shipping cost.Checking your area is a remote area or is not a remote area on the website:http://remoteareas.dhl.com/jsp/first.jsp
When a standard 1/8 motor isn't enough, the HobbyStar 4082 brushless, sensorless motor is the ticket for your 1/8 truck for monster horsepower. 4-pole design and a 12-slot stator provide unbelievable torque. High-quality features like a beautifully machined 6061 T6 billet-aluminum can, buttery-smooth ABEC5 bearings and a 82mm length make this the ultimate motor for your monster truck or truggy.
Features:
Brushless, sensorless 4-pole motor
12-slot high-torque stator
CNC machined 6061 T6 billet aluminum heatsink can
High-purity copper windings maximize efficiency
High-RPM ABEC5 oversized bearings
Universal fit, fits all 1/8 brushless cars, multiple mounting holes with M3 and M4 threads
Precision balanced rotor for smooth operation, reliability and maximum RPM
Stator-Super Thin (0.2mm) laminations
Removable/replaceable rotor
Precision engineered for maximum energy conversion.

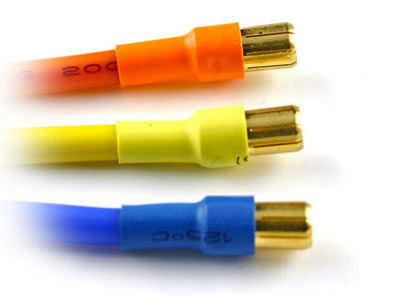

| Product | Watts | Max Voltage | Max Amps | Rotor Poles | IO | Resistance | KV (RPM/Volt) | Max RPM | Length (mm) | Diameter (mm) | Weight (g) | Shaft Diameter (mm) | Shaft Length (mm) | Connectors |
| 4082/2.5Y | 3400 | <28 | 120A | 4 | 2.0A | 0.011 | 1450 | 50,000 | 82 | 40/42 with fins |
470 | 5 | 18 | 6.5mm gold |
| 4082/4T | 3400 | <26 | 130A | 4 | 3.0A | 0.0092 | 1600 | 50,000 | 82 | 40/42 with fins |
470 | 5 | 18 | 6.5mm gold |
| 4082/3T | 3400 | <21 | 160A | 4 | 4.5A | 0.0053 | 2000 | 50,000 | 82 | 40/42 with fins |
470 | 5 | 18 | 6.5mm gold |
| 4082/1.5Y | 3400 | <19 | 170A | 4 | 6.0A | 0.0042 | 2200 | 50,000 | 82 | 40/42 with fins |
470 | 5 | 18 | 6.5mm gold |
